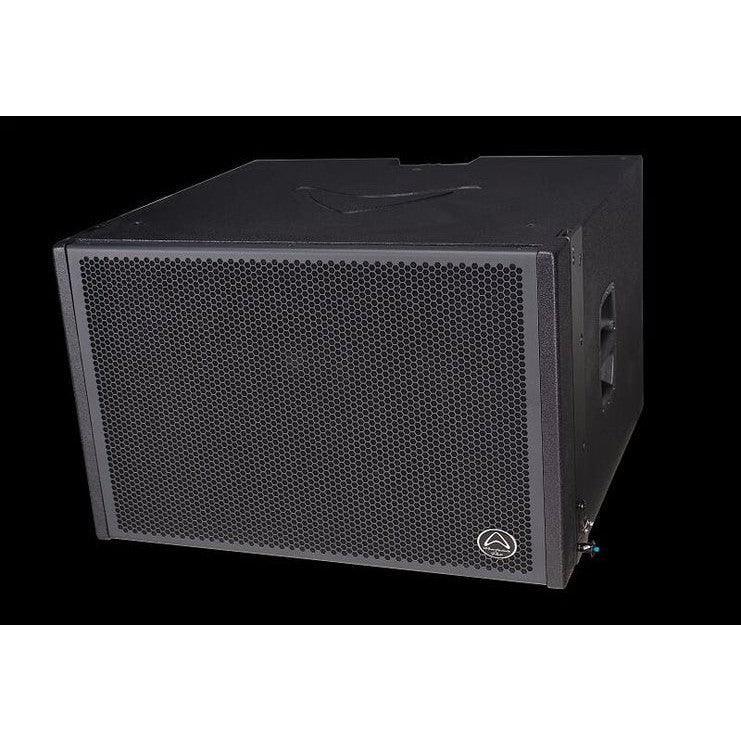

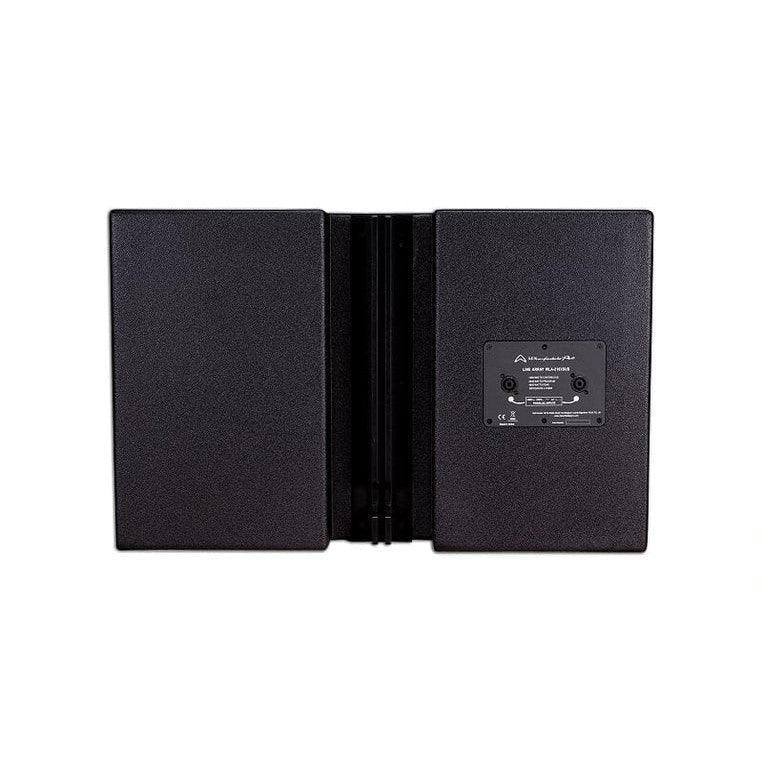

Wharfedale Pro WLA-210X Sub Speaker
FEATURES
- 2 x 15″ LF drivers with 4.0″ voice coils
- 145 dB Max SPL
- 18 mm Birch plywood construction
- Integral rigging system
- 1200 watts AES (RMS)
- 2400 watts Programme
- 4800 watts Peak
- 4 Ω impedance
DESCRIPTION
The WLA-210XSUB features dual 15” LF drivers with massive 4.0” voice coils. Specifically created for use with WLA-210X, this subwoofer can be flown or ground stacked easily as a result of its comprehensive rigging hardware.
Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and is coated in a premium and durable Rhino Rock paint. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminium.
An elegantly simple 3-point suspension system combined with light weight, compact size and excellent handling ergonomics mean that an array can easily be deployed. With the WLA-210X Common Fly frame, systems can be configured as flying or ground stacked in multiple combinations.
SPECIFICATION
| Model Name | WLA-210XSUB |
|---|---|
| System Type | Passive |
| Configuration | Dual 15” Subwoofer |
| Frequency Response (+/-3 dB) | 39 Hz – 900 Hz |
| Frequency Range (-10 dB) | 35 Hz -1.5 KHz |
| Sensitivity (2.83 v / 1 m) | 108 dB |
| Calculated Maximum SPL @1 m | 145 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 2 x 381 mm / 2 x 15” |
| Voice Coil Size | 101.6 mm / 4” |
| Rated Impedance | 8 Ω x 2 |
| LF Power (re:AES2-2012) | 2 x 600 W |
| High Frequency Transducer | |
| HF Driver Type | |
| Voice Coil Size | |
| Exit Size | |
| Diaphragm Material | |
| Rated Impedance | |
| HF Power (re:AES2-2012) | |
| Nominal Coverage (H x V) | |
| Power | |
| System Continuous Power | 1200 W |
| System Programme Power | 2400 W |
| System Peak Power | 4800 W |
| Crossover frequency | No |
| Input Connector | 2 x speakON compatible |
| Hardware | Integral side plate |
| non adjustable | |
| Enclosure | |
| Enclosure Material | 18 mm Plywood |
| Finish | Rhino Black Paint |
| Grille Material & Finish | 1.2 mm Black Steel |
| Dimensions – (Unpacked) | |
| Height Front | 485 mm / 19.1″ |
| Height Rear | 485 mm / 19.1″ |
| Width | 760 mm / 29.9″ |
| Depth | 716 mm / 28.2″ |
| Dimensions – (Packed) | |
| Height | 575 mm / 22.6″ |
| Width Front | 850 mm / 33.5″ |
| Width Rear | 850 mm / 33.5″ |
| Depth | 806 mm / 31.7″ |
| Weight | |
| Net Weight (kg / lbs) | 63.0 kg / 138.4 lbs |
| Gross Weight (kg / lbs) | 68.0 kg / 149.6 lbs |
It is imperative to use the Wharefedale Pro SC48FIR DSP with any Wharfedale Pro WLA Series Line Array
”
No specifications available.
No use cases available.
No downloads available.
