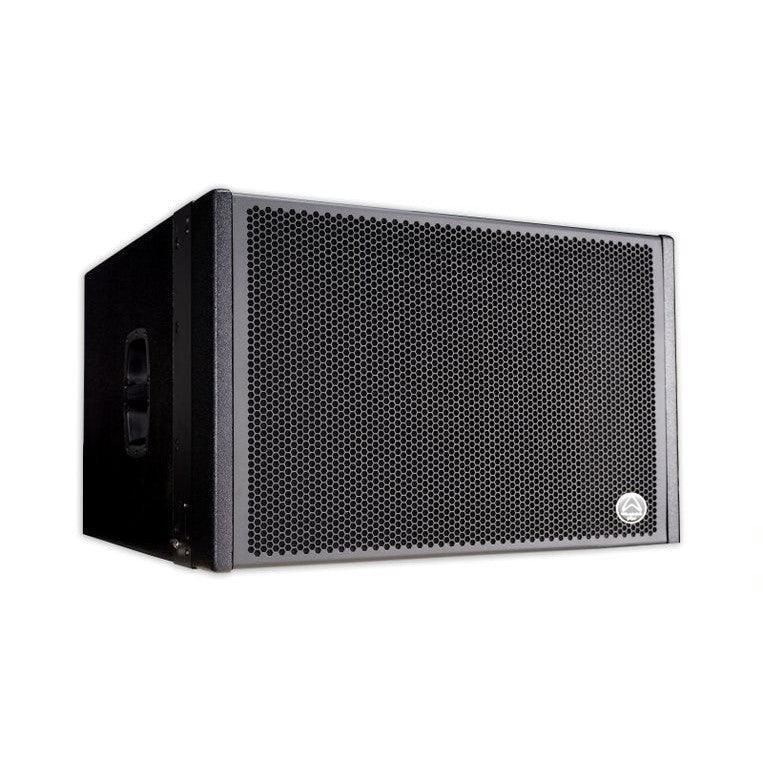

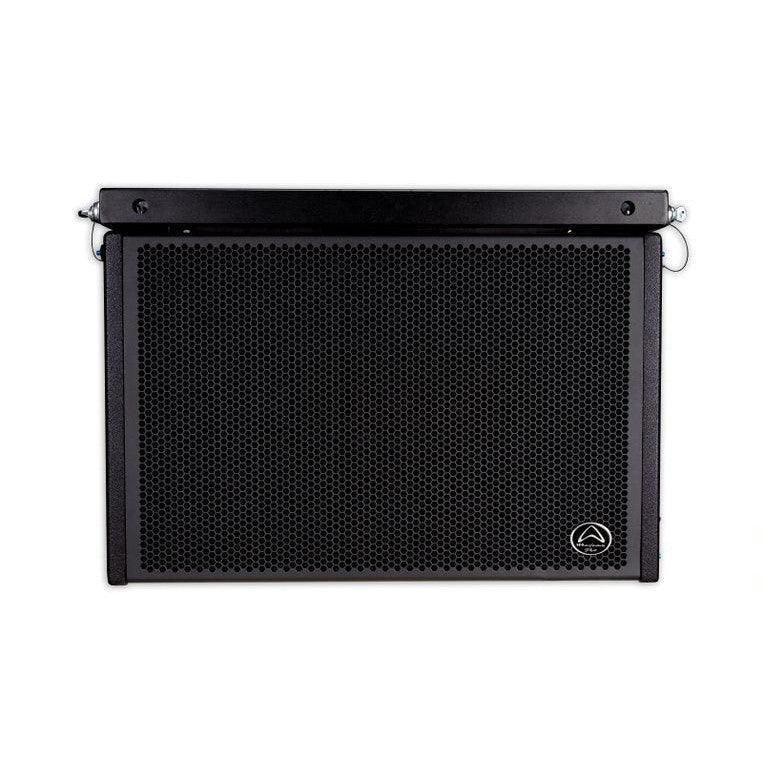

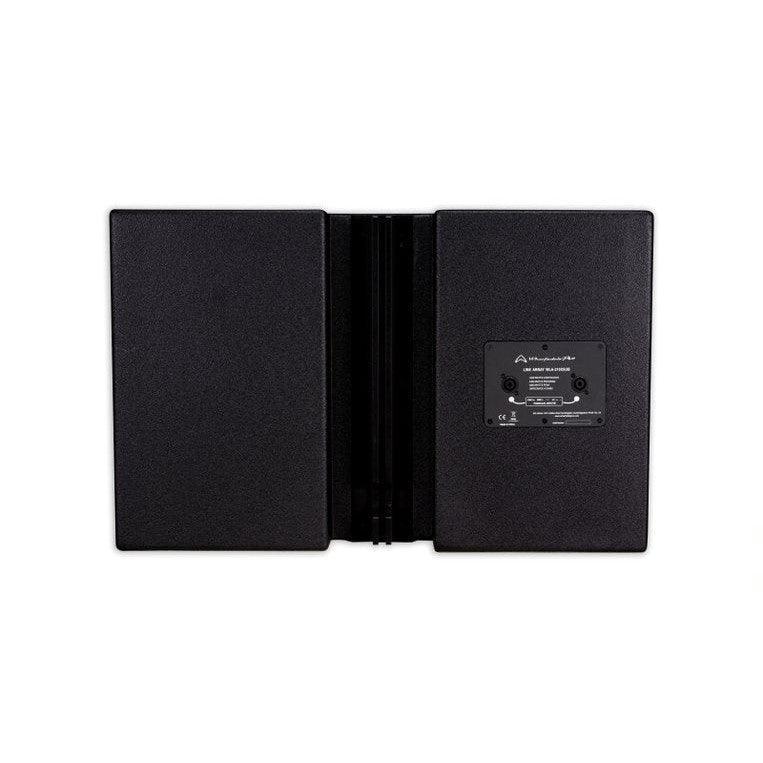

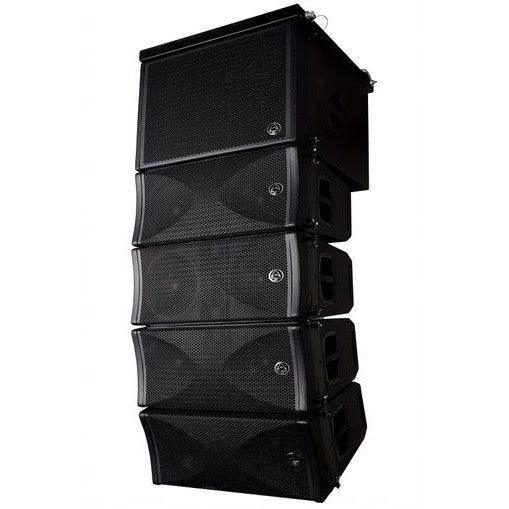

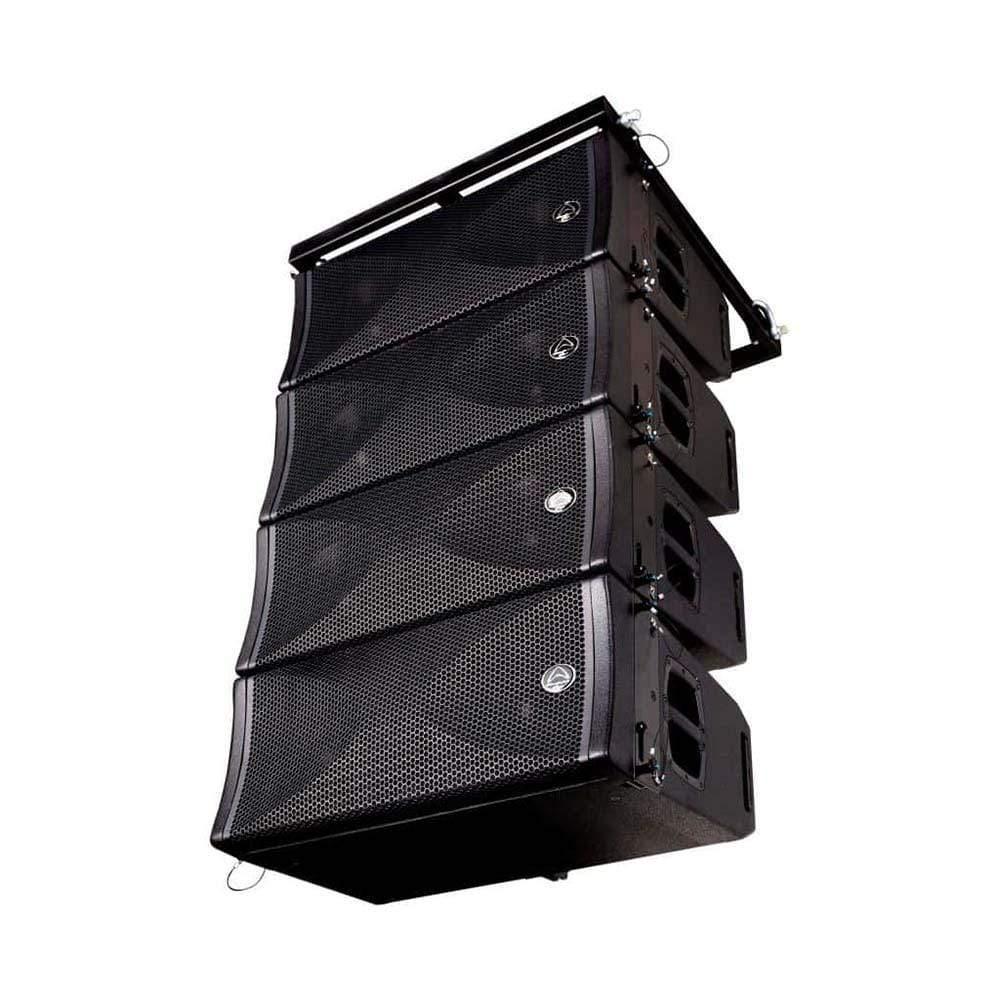

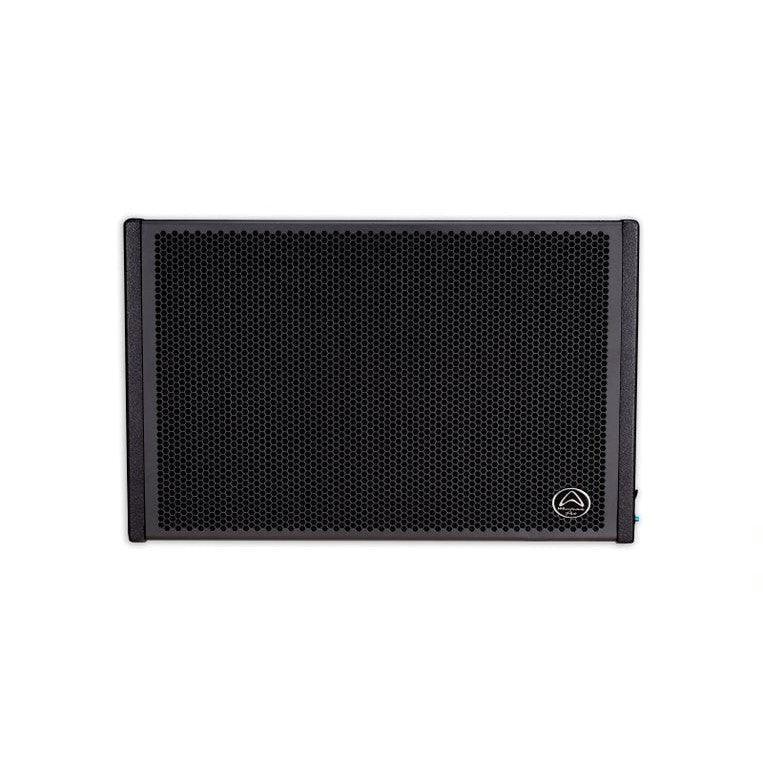

Wharfedale Pro WLA-210X Line Array System

FEATURES

• 2 x 10″ LF drivers
• 3″ Neodymium HF compression driver
• 138 dB Max SPL
• 15 mm / 18 mm Birch plywood construction
• Integral, side plate adjustable rigging system
• 100° x 10° dispersion
• 180 watts programme HF
• 1600 watts programme LF
• 16 Ω impedance

DESCRIPTION

The WLA-210X line array system keeps the same design philosophies as the acclaimed WLA-25 and WLA-28 systems from Wharfedale Pro.
Portable, powerful and versatile line array solutions which are ideal for both touring and fixed installation applications.

Each WLA-210X element uses a pair of custom 10” Wharfedale Pro high-power low-frequency drivers, while the high frequencies are handled
by a premium 3.0” titanium diaphragm, neodymium magnet compression driver coupled to a 100° x 10° waveguide.

The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source – resulting in greatly
reduced destructive interaction within the array.

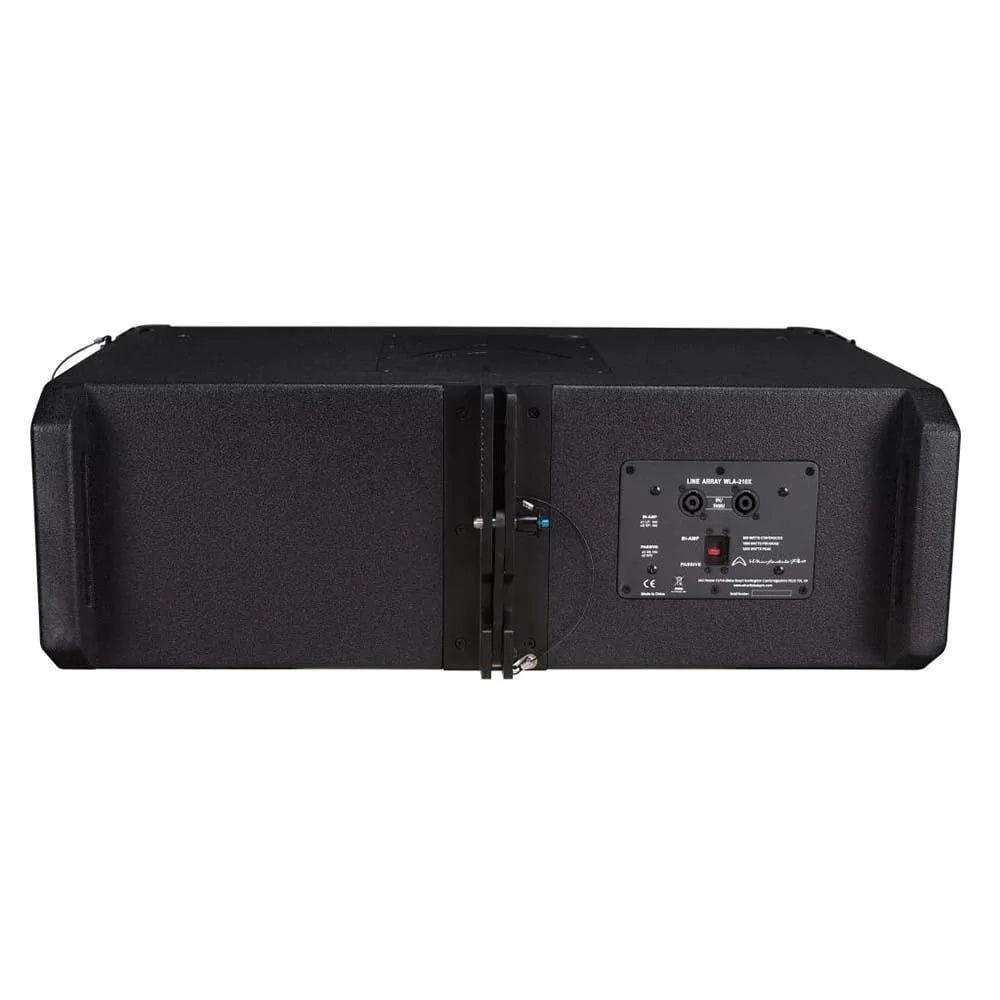

The WLA-210X element also features Passive and Bi-amp modes which allows for complete system control. The bi-amp feature enables the system
designer to select the best amplification for each driver component within the array. Such control, when used with external signal processing
such as the Wharfedale Pro Versadrive series, gives the engineer the ultimate in system fine tuning. This, in turn, leads to the best audio output.

SPECIFICATIONS

HOW IT WORKS

The WLA-210X Line Array System from Wharfedale Pro features both Passive and Bi-amp modes. The Passive mode allows the system to be powered
by a single amplifier, while the Bi-amp mode enables the system designer to select the best amplification for each driver component within the array.
This, in turn, gives the engineer the ultimate in system fine-tuning and leads to the best audio output.

It is imperative to use the Wharfedale Pro SC48FIR DSP with any Wharfedale Pro WLA Series Line Array.
