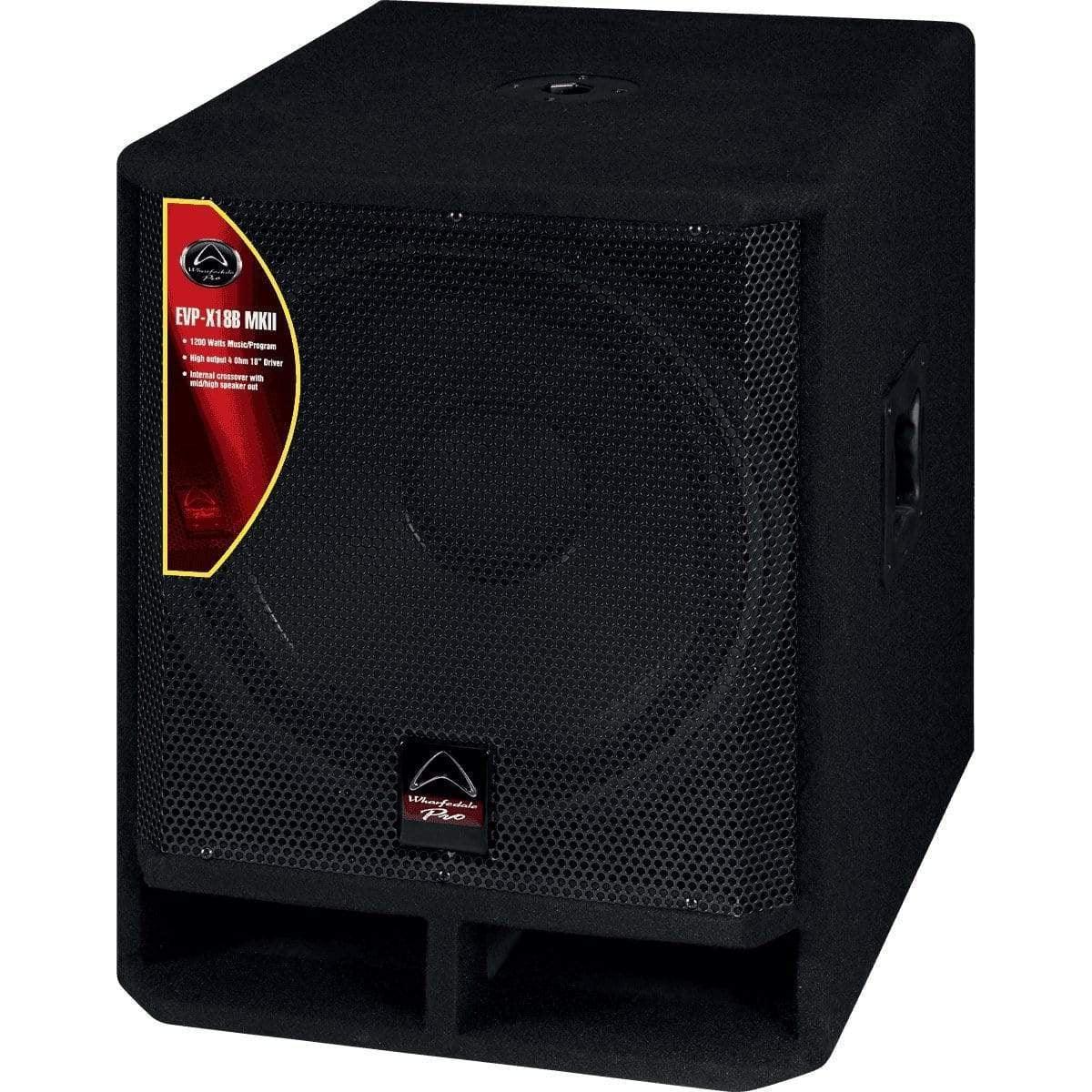

Wharfedale Pro EVP-X18B MKII Passive PA Subwoofer
DESCRIPTION
From the EVP, EVP-X, and now the EVP-X MKII, we have honed the EVP-X18B MKII, which is part of one of the most well respected and reliable speaker series in the industry. Now in the era of the MKII, you can now put your trust into a demanding yet durable PA sound system, built around Wharfedale Pro’s latest acoustic and manufacturing innovations. The new series serves up an extra 20% power handling and an additional 32dB SPL over the original EVP-X.
Eliptical waveguides
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
TOUGH CARPET
Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.
The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.
FEATURES
- 18″ passive subwoofer
- 18″ LF driver with 3.0″ voice coil
- 600 watts AES (RMS)
- 1200 watts Programme
- 2400 watts Peak
- 134 dB Max SPL @ 1 meter
SPECIFICATIONS
| Model Name | EVP-X18B MKII |
|---|---|
| System Type | Passive |
| Configuration | Subwoofer |
| Frequency Response (+/-3 dB) | 35 Hz – 250 Hz |
| Frequency Range (-10 dB) | 30 Hz – 250 Hz |
| Sensitivity (2.83 v / 1 m) | 100 dB |
| Calculated Maximum SPL @1 m | 134 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 470 mm / 18″ |
| Voice Coil Size | 76.2 mm / 3″ |
| Rated Impedance | 4 Ω |
| LF Power (re:AES2-2012) | 600 w |
| High Frequency Transducer | |
| HF Driver Type | |
| Voice Coil Size | |
| Exit Size | |
| Diaphragm Material | |
| Rated Impedance | |
| HF Power (re:AES2-2012) | |
| Nominal Coverage (H x V) | |
| Power | |
| System Continuous Power | 600 w |
| System Programme Power | 1200 w |
| System Peak Power | 2400 w |
| Crossover frequency | 150 Hz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| + 2 x 1/4” Jacks | |
| Hardware | |
| Pole Mount | 35 mm Pole Socket |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | Particle Board |
| Finish | Black Carpet |
| Grille Material & Finish | 1.2 mm Steel |
| Dimensions – Unpacked | |
| Height | 650 mm / 24.02″ |
| Width Front | 522 mm / 20.55″ |
| Width Rear | 522 mm / 20.55″ |
| Depth | 610 mm / 24.02″ |
| Dimensions – Packed | |
| Height | 715 mm / 28.15″ |
| Width Front | 656 mm / 25.83″ |
| Width Rear | 656 mm / 25.83″ |
| Depth | 568 mm / 22.36″ |
| Weight | |
| Net Weight (kg / lbs) | 39.3 kg / 66.5 lbs |
| Gross Weight (kg / lbs) | 42.6 kg / 93.7 lbs |
No specifications available.
No use cases available.
No downloads available.
