Home > Brands > Wharfedale Pro > Wharfedale Pro CPD3600 Power Amplifier
Wharfedale Pro

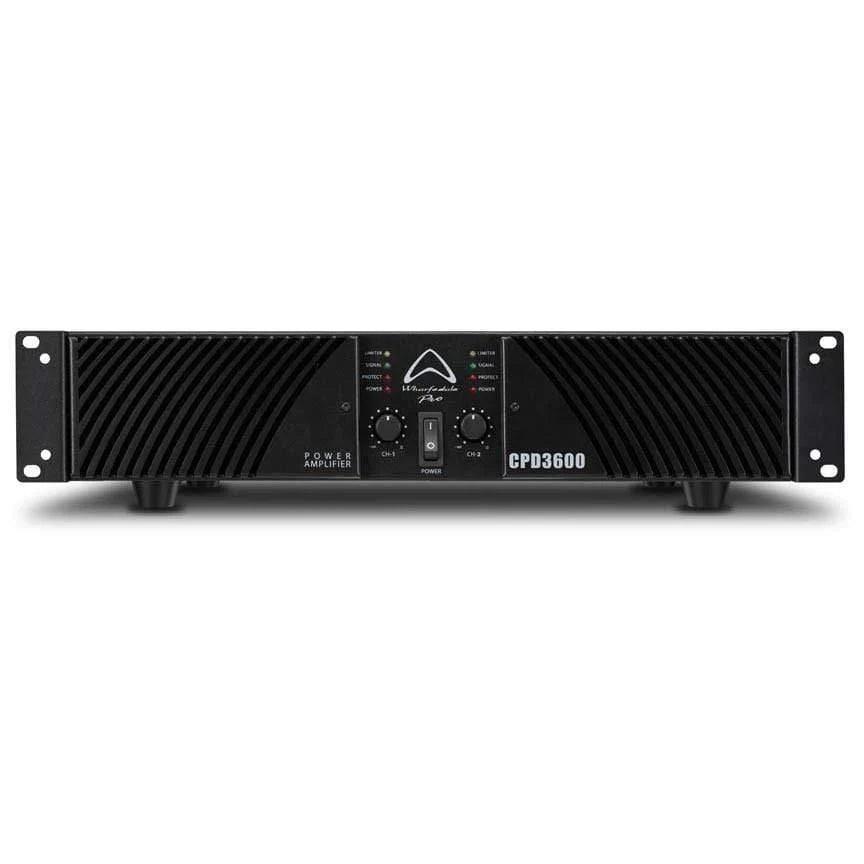

Wharfedale Pro CPD3600 Power Amplifier

List Price:
Original price was:  2 ,053.00.Current price is:  0.00.
In Stock

Massive transformers
CPD series are built around a massive heavy-duty toroidal transformer.

This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.

EASY CLEANING
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.  Dirty cooling fans reduce efficiency and can lead to overheating.

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.

This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.  That’s cool !

FEATURES
  • 2 channels
  • 8 Ohm 2 x 870 Watts
  • 4 Ohm 2 x 1300 Watts
  • 8 Ohm Bridged 1 x 2590 Watts
SPECIFICATIONS
Stereo Power Output
8 Ohms x 2 870W RMS
4 Ohms x 2 1300W RMS
Bridged Mono Output
8 Ohms 2590W RMS
4 Ohms 3600W RMS
Inputs 2 x XLR
Outputs 2 x XLR, 2 x Speakon
Frequency Response 20Hz – 30KHz
Topology Class H
Sensitivity 0dBu (0.775Vrms)
Input Impedance 20K Ohms
Maximum Input Level 22dBu (9.7Vrms)
Slew Rate >40V / us
Crosstalk <-70dB
Signal to Noise >100dB
Protection Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Display 4 segment LED
Cooling Variable Speed Fan
Dimensions 88 x 483 x 451mm
Net Weight 24kg / 52.91lbs
