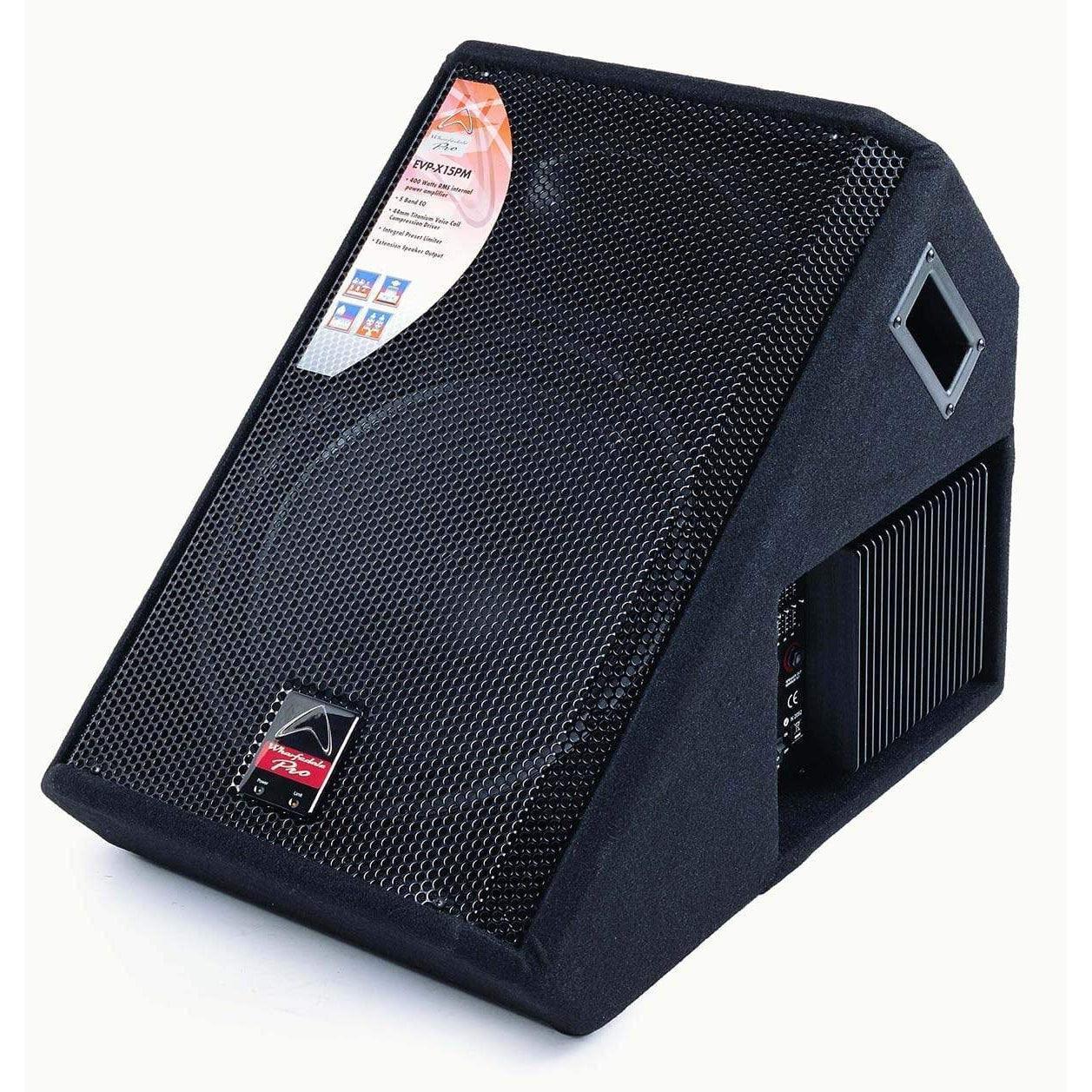

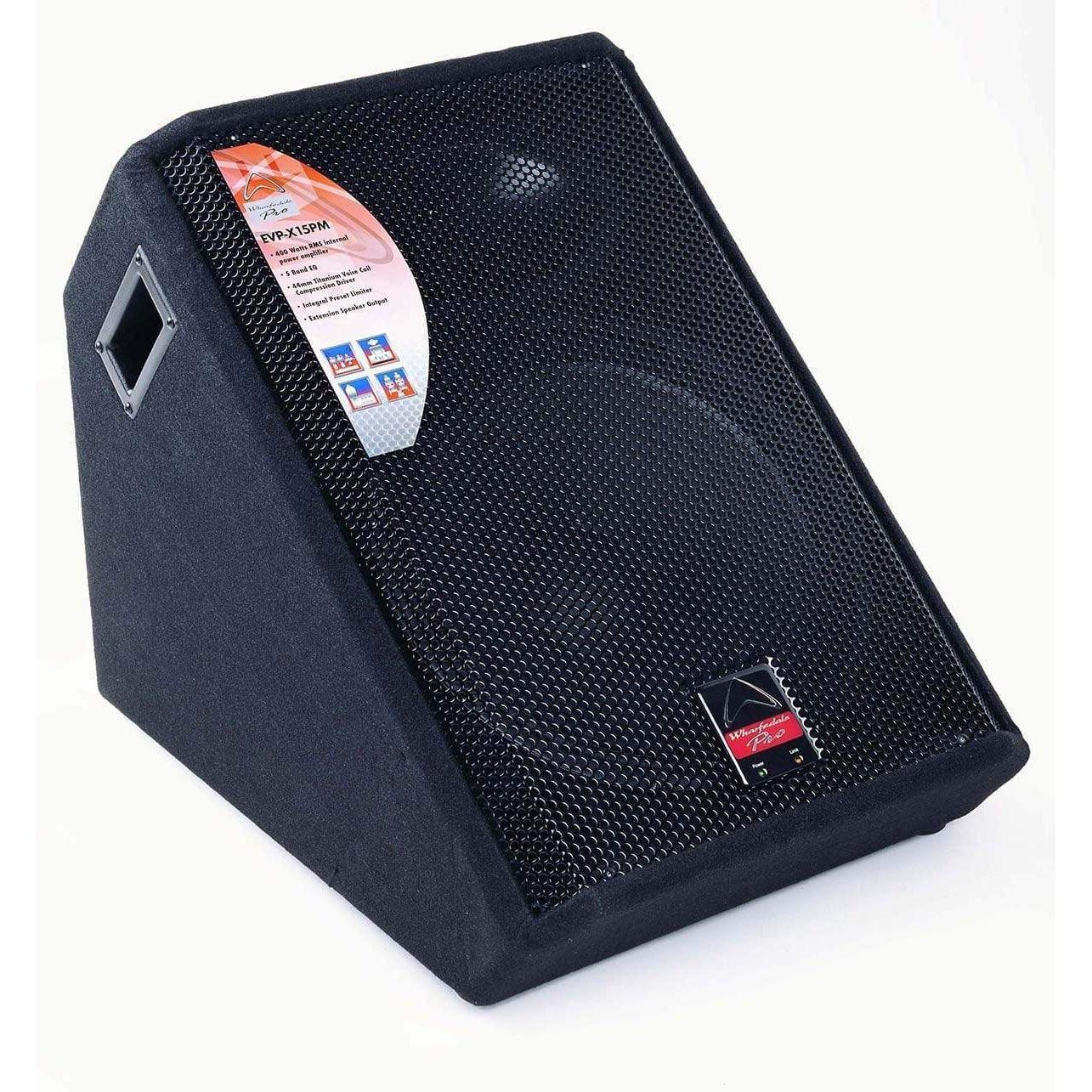

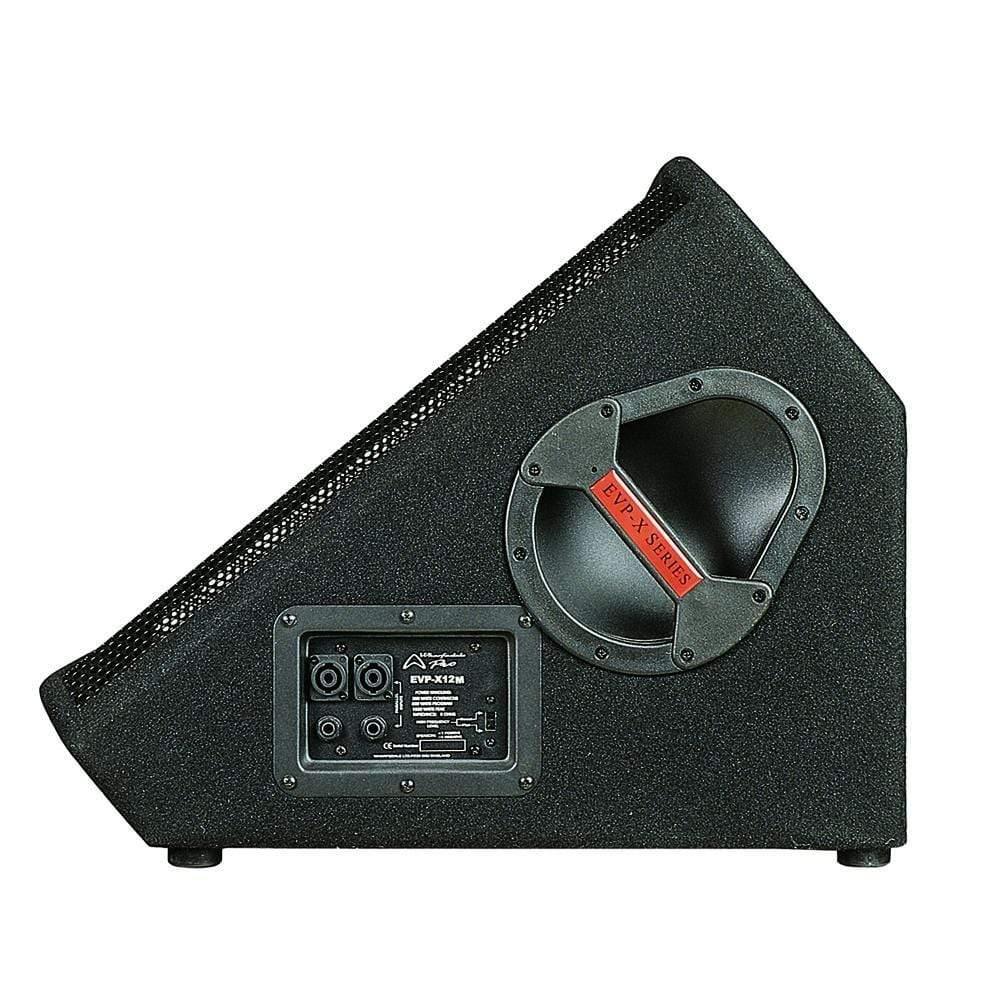

Wharfedale Pro EVP-X15PM Passive Stage Monitor
DESCRIPTION
Keep it tidy
EVP-XPM active floor monitors have been specifically designed to give maximum versatility on stage.
These are not just active monitors turned sideways but are built specifically as floor monitors. The inclusion internal amplification, a 5-band graphic EQ and well thought out connectors, reduces unnecessary cabling and additional hardware on stage. The balanced input uses a combi XLR/jack connector so it’s easy to always find suitable connection cables.
POWER OUT
EVP-XPM’s also feature a unique powered ‘Speaker output’ jack. This allows for connection to a passive secondary monitor (such as the EVP-X15M MKII) without the need for additional amplification or complex cabling. The speaker output system is designed to drive a passive loudspeaker with 8 ohm impedance.
A little love and protection
Externally the EVP-XPMs are protected by a durable carpet finish.
Internally the Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.
FEATURES
- 15″ Active bi-amplified floor monitor
- 5-band EQ
- 300 watts continuous
- 500 watts peak
SPECIFICATIONS
| Type | Monitor Speaker |
|---|---|
| Weight | 27.4kg |
| Brand | Wharfedale |
| Dimensions | 675mm X 445mm X 473.5mm |
| Drivers | ProTech™ Driver |
| Enclosure Material | Black Carpet |
| EQ Bands | 5 Band Graphic EQ |
| Frequency Response | 50Hz – 20kHz |
| Input Connections | 1 x XLR Jack / Combi |
| Inputs | XLR / Jack Combi Input |
| Inputs/Outputs – Other | Powered output for additional passive monitor |
| Manufacturer Part Number : | EVP-X15PM |
| Model no. | EVPX15PM |
| Other Features | High power handling, high efficiency |
| Output Connector | 1 x XLR, 1 x 6.3mm Jack (Powered output) |
| Outputs | XLR Output |
| Product Configurations | 2-way Bi-Amplified |
| Speaker Drivers | 90 x 60 Elliptical Wave Guide Horn with 1.75″ (44mm) titanium diaphragm driver |
| Total Power: | 300W / 500W |
HOW IT WORKS
1. Plug the XLR/Jack Combi Input of the monitor into your sound source.
2. Adjust the sound using the 5 Band Graphic EQ.
3. Connect the XLR Output of the monitor to your powered speaker.
4. Enjoy your performance.
PRODUCT FAQ
Q: How loud is the Wharfedale EVP-X15PM Passive Stage Monitor?
A: The Wharfedale EVP-X15PM Passive Stage Monitor has a total power of 300W / 500W.
No specifications available.
No use cases available.
No downloads available.
