Wharfedale Pro XR3500 Power Amplifier
FEATURES
- 2 channels
- 8 Ohm 2 x 1020 W
- 4 Ohm 2 x 1460 W
- 8 Ohm Bridged 1 x 2800 W
- Class H level 3
DESCRIPTION
Massive transformers

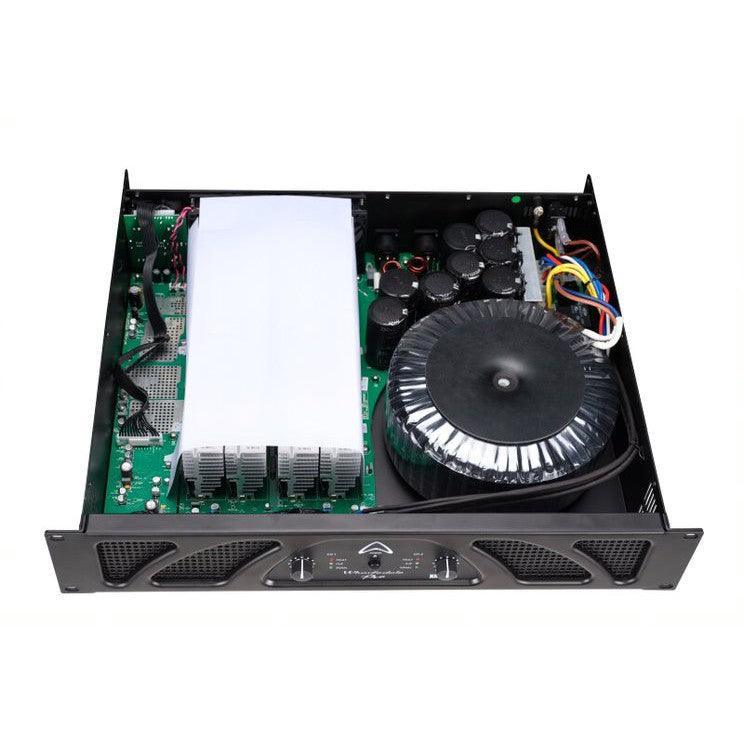

XR series are built around a massive heavy-duty toroidal transformer.
This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.
Protection
An XR series amplifier features comprehensive protection circuitry. This ensures that no matter what problems might exist with external cabling, AC power or loudspeakers, the amplifier will protect itself, and its surroundings.

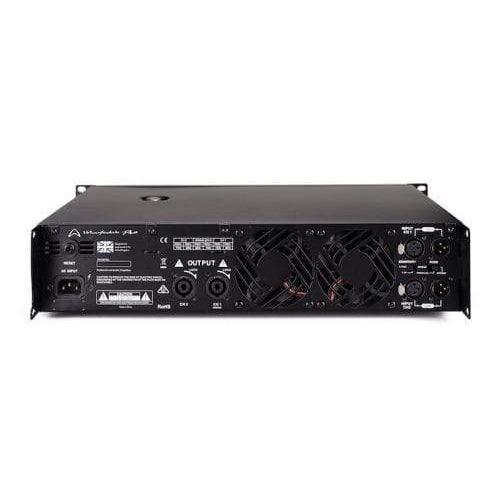

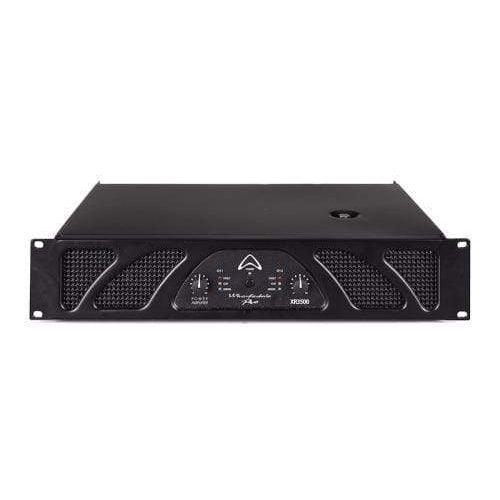

Front panel LED’s give immediate and clear feedback to the situation. Should an external fault occur, the red LED ‘Fault’ light will illuminate and the amp will go into Protection mode. A rear panel ‘Reset’ button is then available to reset the amplifier once the external fault has been diagnosed and removed.
Handy ‘Clip’ LED’s are also visible from the front panel. Even from a distance, its simple and clear to see and understand the status of the amp.
SPECIFICATIONS
| Model Name | XR3500 |
|---|---|
| Stereo Power Output : RMS | |
| 8 Ω x 2 | 1000 w |
| 4 Ω x 2 | 1350 w |
| Bridged Mono Power Output : RMS | |
| 8 Ω | 2700 w |
| Frequency Response(+/-10 dB) | 20 Hz – 20 KHz |
| Topology | Class H Level – 3 |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 (speakON compatible) |
| 2 x XLR link | |
| Input Sensitivity & impedance | |
| Sensitivity | 0.775 V or 1.4 V |
| Balanced XLR input Impedance | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | |
| Slew Rate | >10 V/us |
| Crosstalk | <-75 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.05% |
| Damping Factor (8 Ω), 10 Hz – 400 Hz | >200 |
| Dimensions | 482 mm x 88 mm x 390 mm |
| Net Weight | 18.0 kg |
| Gross Weight | 21.3 kg |
HOW IT WORKS
1. Plug in the amplifier to the power source.
2. Connect the XLR thru connectors to the audio source.
3. Select the desired mode and input sensitivity on the rear panel mode switches.
4. Adjust the volume and enjoy the amplified sound.
PRODUCT FAQ
Q: Does this amplifier have full circuitry protection?
A: Yes, the amplifier has full circuitry protection for thermal, over current, DC, and output short circuit.
Q: Does this amplifier have variable speed fans?
A: Yes, the amplifier has ultra quiet variable speed fans to keep it running smoothly and quietly.
Q: Does this amplifier have a toroidal transformer?
A: Yes, the amplifier has a huge toroidal transformer to take care of any AC power fluctuations.
”
